Specifications:
Valve Size: 1" (25.4mm) standard neck
Can Capacity: 200ml aluminum can
Material:
-Inner bag: Aluminum
-Valve body: Aluminum/ Tinplate
-Actuator: PP
-Propellant: Nitrogen (food-grade)
Advantages:
✔ Preserves oil freshness for 24+ months
✔ 100% propellant-free contact with oil
✔ Anti-clog design for viscous liquids
Customized nasal spray package including
✔Actuator & Plastic cap
Specifications:
Valve Size: 20mm slim neck
Can Capacity: 100-500ml customizable
Material:
-Inner bag: Aluminum
-Valve body: Aluminum/ Tinplate
-Actuator: PP
Advantages:
Some sensitive solvents can be packed with a BOV (bag on valve) to isolate the reaction with aluminum cans or tinplate cans
Our Manufacturing Capabilities
| Volume (ML) | BOV Sizes (MM) |
| 30-50 | 77*87 |
| 50-75 | 77*101 |
| 80-100 | 82*128 |
| 100-130 | 92*130 |
| 160-180 | 105*130 |
| 180-200 | 105*140 |
| 380-400 | 115*200 |
| 480-500 | 125*220 |
| 580-600 | 125*245 |
| 630-650 | 125*250 |

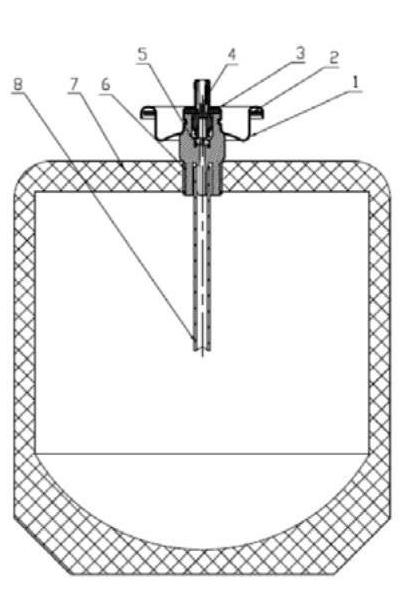

| Component | Part Description | Product Drawing |
| 1-Mounting cup | Both-side clear lacquered aluminum ,without dimples. |  |
| 2-Outer gasket | Butyl (1.2mm) | |
| 3-Inner gasket | Buna | |
| 4-Stem | PA.Three Orifices 3 * ф0.050" (3 * ф1.27mm)(Natural) | |
| 5-Spring | Stainless Steel(SUS304) | |
| 6-Housing | PE.Tail Orifice φ0.078"(ф2.0mm)(Natural) | |
| 7-BAG | Dimension: Height 145mm * Width 100mm * Bottom of the bag 32mm | |
| 8-Diptube | PE.(Natural) |
✔Bag materials: EVOH, PE, aluminum laminate
✔Valve types: Mechanical/continuous spray, metered dose
✔Actuators: Spray/mist/foam heads, trigger handles
Why Choose Our BOV Systems?
✔10+ Years of OEM experience
✔In-house Lab for leakage/compression testing
✔One-Stop Service from prototyping to bulk production
✔MOQ 20,000 pcs with 15 days lead time
Sample Industries Served
• Gourmet food oils & vinegar
• Pharmaceutical nasal sprays
• Automotive brake cleaners
• Luxury cosmetic serums
