Customize R134a Refrigerant Gas Tin Can for HFC-134a, R-134a
Country of Oringin :
ChinaSize :
Diameter 65mm/70mm high pressurePrinting color :
clear varnish/white coated/CMYK 4 colorPort of delivery :
Shenzhen/Guangzhou ChinaMOQ quantity :
7500Terms of Payment :
T/T (L/C, D/P, D/A, Paypal, Western Union, etc)Trade Term :
FOB/CIF/CFR (If you have the need of other trade term, please contact us to discuss.)Description
This empty aerosol tin can is used for HFC-134a, R-134a Refrigerant gas can series products. We provide OEM service and quality 3-pieces tinplate can with diameter 45mm, 49mm, 52mm, 57mm, 65mm and 70mm.

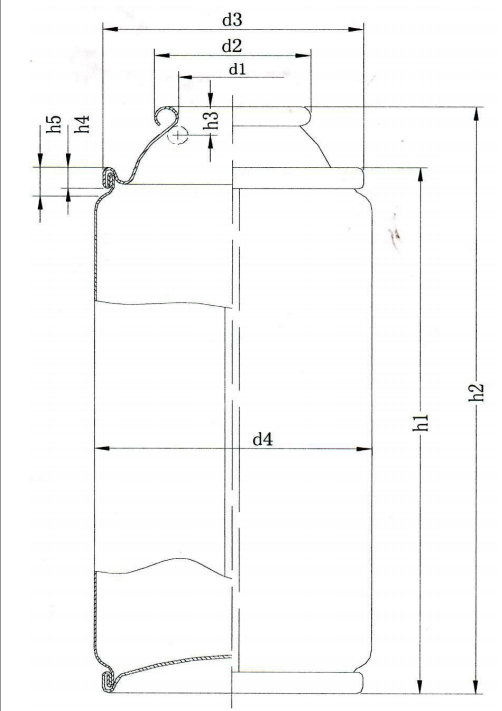

SPECIFICATION | mm | Product drawing | |
d1 | opening dia inside | Φ25.40±0.10 | ![]() |
d2 |
opening dia outside | Φ31.20±0.15 | |
d3 | outside dia of the double seam | Φ50.8±0.20 | |
h1 | can height | h1±0.10 | |
h2 | total height | h2±0.10 | |
h3 | contact height | 4.00±0.15 | |
h4 | height of the double seam | 2.90 | |
h5 | crinkle height | 6.00±0.20 | |
pressure | buckling pressure | ≥1.20Mpa | |
pressure | burst pressure | ≥1.40Mpa | |
cone | T0.28tinplate | T2.5BA | |
can body | T0.19 tinplate | T2.5BA | |
dome | T0.28tinplate | T2.5BA |
Size: 65×100mm
MOQ: 7500 pcs
Usage: HFC-134a, R-134a Refrigerant gas...
Type: High top cone & neck in type
Printing color: clear varnish/white coated/CMYK cutomized
Pressure: high pressure (burst ≥ 18 bar); normal pressure (burst ≥ 14 bar)

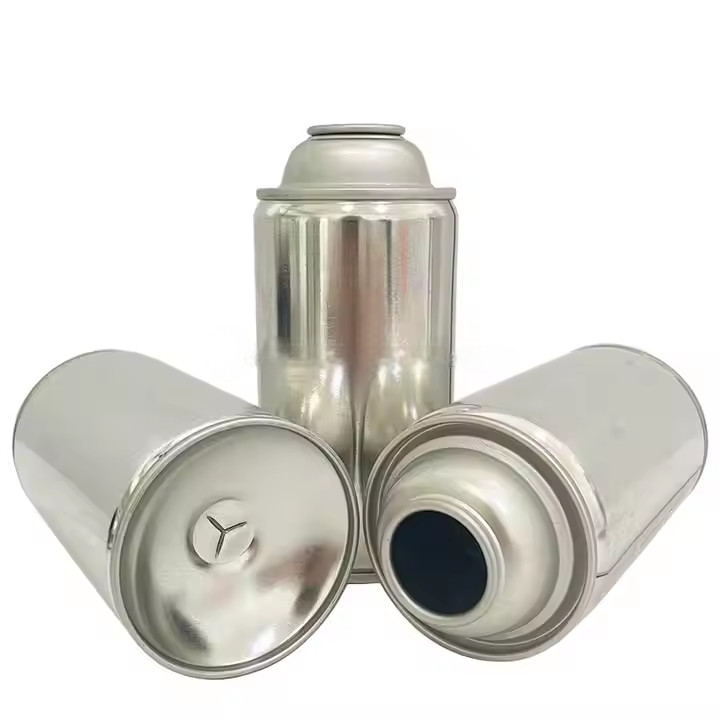

Customers can customize the high-pressure tank according to their own needs (as shown in the picture, the bottom of the pressure relief sign)
Other can options for Refrigerant gas product
Different from the general 3 pieces tinplate aerosol can, 2 pieces can only have 2 components--can body & aerosol can bottom, without aerosol can top.Moreover, the quality of 2 pieces tin can is also better than that of 3 pieces tin can, which is high-pressure aerosol can.
![]() |
![]() |
![]() |

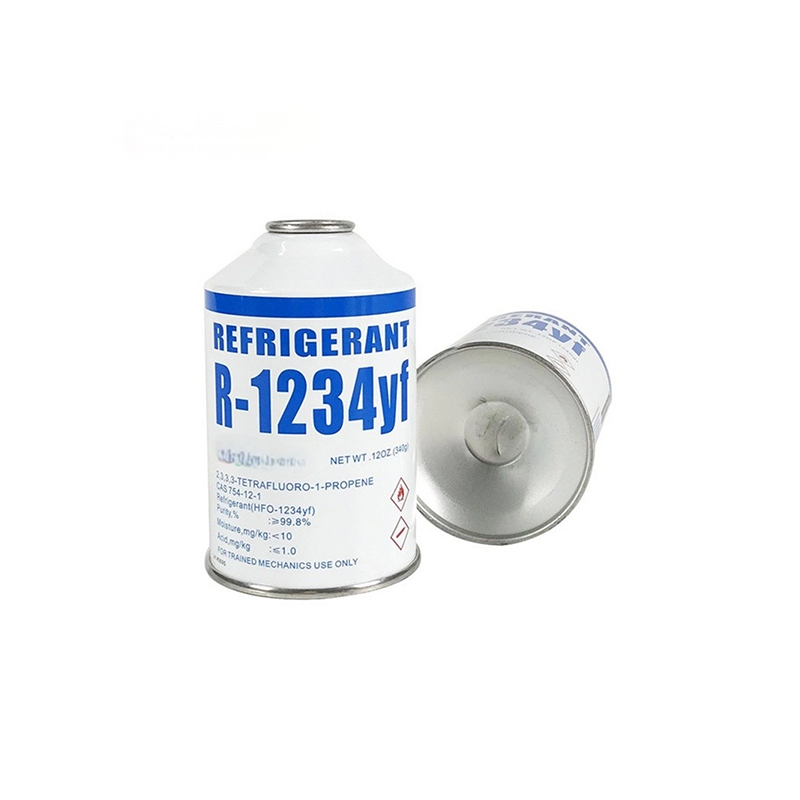

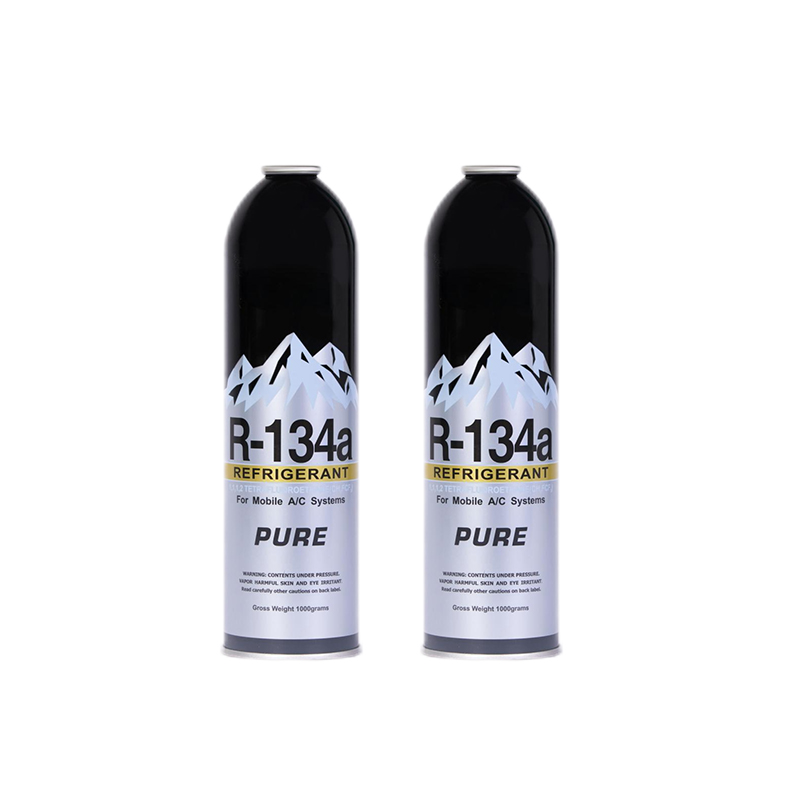

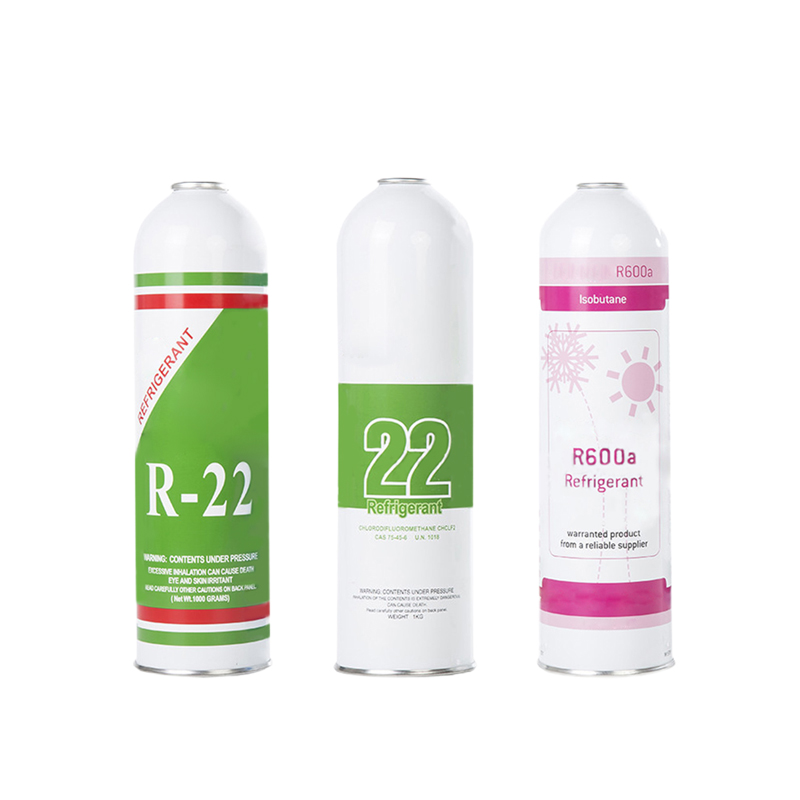

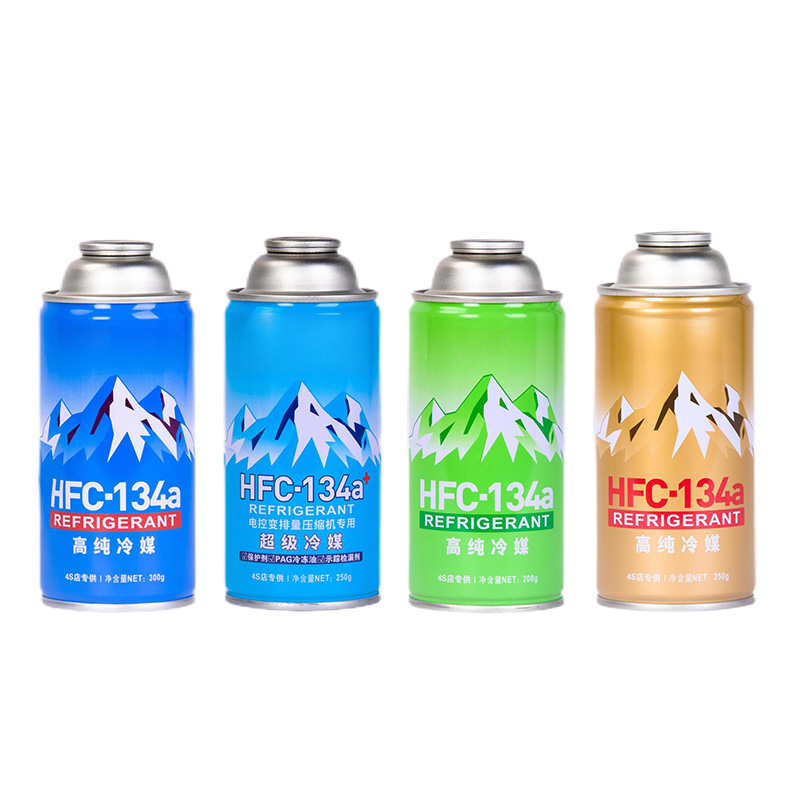

R22 R600a refrigerant gas tin can | R134yf refrigerant gas tin can | R134a refrigerant gas tin can |

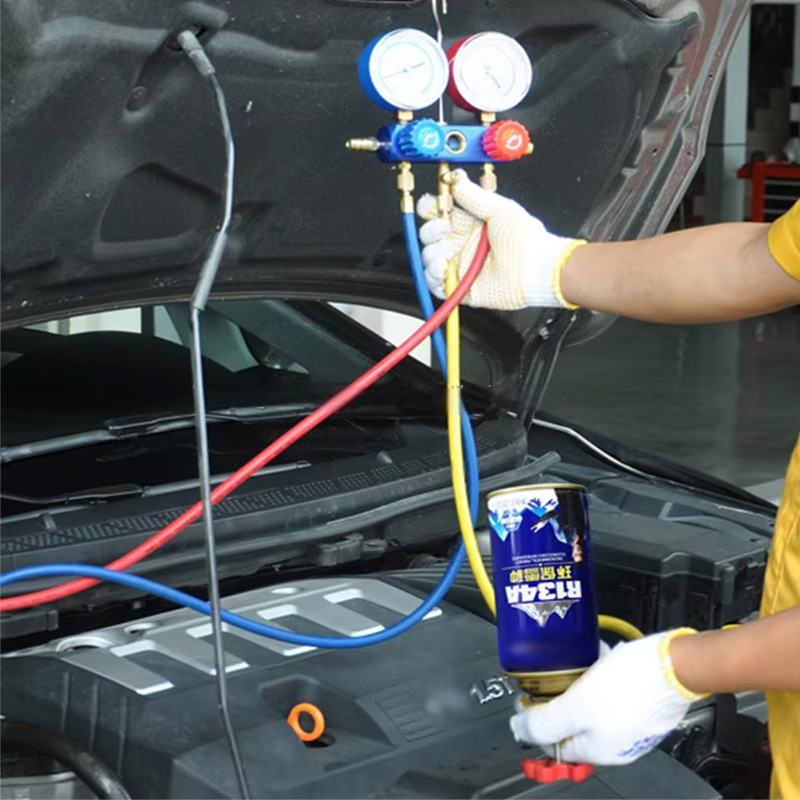

Application
FAQ
Q1. What's the MOQ? Can I order less than MOQ?
The MOQ is 7500 pcs for 3 pieces tin can.
Q2. Can you print our Logo & Brand on the products?
Sure, we accept OEM service.
Q3. How to get your samples?
We supply free sample with standard sizes of 1-5pcs for you to test the quality. But please provide your express account or afford the freight the cost.
Q4. Can you make samples with our Logo? How long days would we get it?
Yes, we can make samples with your printing design. Usually it needs around 15 days.
Q5. What is the lead time if I place an order?
Usually it needs 12-20 days that the production would be completed.
